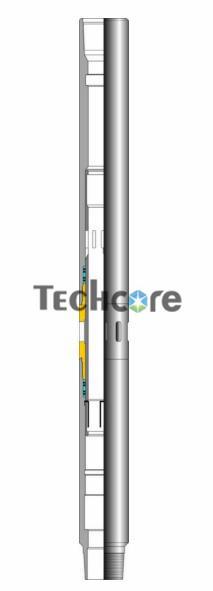

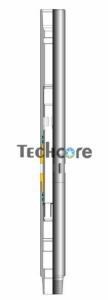

Well Completion Sliding Sleeve Well Completion Tools With 2.81 Profile SSD
Introudction of Sliding Sleeve
The Sliding Sleeve is a kind of subsurface tools applied for well completion service in oil well. The sliding sleeve is operated to switches tubing and casing annulus, which can be opened and closed by wireline tools. The sliding sleeve is the layer exploitation tools during the well completion in Oil&Gas well.
Features of Sliding Sleeve
- The sliding sleeve adopt large drift diameter design to provide sufficient flow area.
- The sliding mandrel of the SSD is equipped with balance port to equalize the pressure of the oil and sleeve in order to prevent seal from damage.
- There are three lock mechanism limitations to be opened, closed and balanced.
- The material of the sliding sleeve body is AISI 4140,4130,13Cr and Inconel.
- Upper joint of the sliding sleeve door has a standard F-type profile
- Suitable for the standard wireline working.
- “D” type opens in the downward direction, “U” type opens in the upward direction
Specification of the Sliding Sleeve
| Tubing norms | Max OD (in.[mm]) | Seal surface (in[mm]) | Opening direction | W.P. (PSI) | Total Length (in[mm]) |
| 2 7/8 | 3.75[95.2] | 2.312[58.72] | Down | 5000-10000 | 48.6[1234] |
| 3 1/2 | 4.5[114] | 2.81[71.42] | Down | 5000-10000 | 50[1275] |
| 4 1/2 | 5.5[140] | 3.75[95.25] | Down | 5000-10000 | 58[1473] |
| 2 7/8 | 3.75[95.2] | 2.312[58.72] | Up | 5000-10000 | 48.6[1234] |
| 3 1/2 | 4.5[114] | 2.81[71.42] | Up | 5000-10000 | 50[1275] |
| 4 1/2 | 5.5[140] | 3.75[95.25] | Up | 5000-10000 | 58[1473] |
About Techcore Oil Tools
With the professional Research and Development (R&D) department and skilled engineers whom were committed to the design of downhole tools for more than ten years, Techcore Oil Tools equipped with advance equipment is specialized in manufacture the oil downhole tools and its related parts in high quality.
In order to meet different requirement of downhole operation, in recent years, we joint with other factory who have accumulated abundant experiences in design and development the well completion tools, to manufacture and supply the oil well downhole tools, so that Techcore can offer one-stop purchasing service of downhole operation tools in well testing, well perforation, well completion.
Oil well completion tools include: Subsurface safety valve, wireline retrievable subsurface safety valve, single string production packer, dual strings production packer, ESP packer, mechanical set packer, permanent packer, compensation device, bridge plug, sliding sleeve, nipples etc.
Welcome to contact us for more information!
