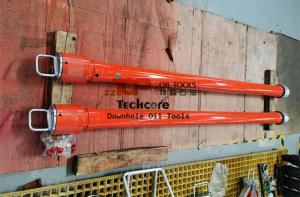

WPCE Wireline Lubricator with Quick Union Connection For Wireline Operation
The integral lubricators are the component of wireline pressure control equipment and used in oil & gas well wireline / slickline operation. The Lubricator is designed with quick union and can stand high pressure. The Lubricator enable the wireline tool string to be introduced or retrieved from a well bore under pressure. The lubricator can be used singly also can use multiply according to the requirement of the oilfield operation,but the seal control head always be assembled on the top of the lubricator. Titanium alloy Lubricator is much better quality and lightweight than normal steel materials. The single length of lubricator is 0.8m - 3m, the number of lubricator and total length could be decided by operation.
Specification of Integral Lubricator
| Model | Working Pressure(Psi) | ID (mm) | Connection | Service Environment | Working Temperature |
| FPG 6-35 | 5000 | 62(65) | 4 1/4"-6SA | Crude oil,Water,Natural gaswith H2S andCO2 | T-20(-29℃+121℃) |
| FPG 7-35 | 5000 | 76(78) | 5"-4ACME |
| FPG 10-35 | 5000 | 103 | 7 3/4"-5ACME |
| FPG 6-70 | 10000 | 62(65) | 4 3/4"--4ACME |
| FPG 7-70 | 10000 | 76(78) | 5 3/4"-4ACME |
| FPG 10-70 | 10000 | 103 | 8 3/8"-4ACME |
| FPG 7-105 | 15000 | 76(78) | 7 3/4"-4ACME |
| FPG 10-105 | 15000 | 103 | 9 1/2"-4ACME |
| FPG 6-70T | 10000 | 62(65) | 4 3/4"--4ACME |
| FPG 7-70T | 10000 | 76(78) | 5 3/4"-4ACME |
| FPG 10-70T | 10000 | 103 | 8 3/8"-4ACME |
About ZZ TOP Oil Tools
ZZ TOP Oil Tools Co., Ltd, headquartered in Xi’an City, focused on the design and production of drill stem testing tools and wellhead equipment since 2010. With the business expanding, ZZ TOP Oil Tools jointed to build the factories for wellhead equipment under the brand " JC Wellhead" and downhole tools under the brand "Techcore".
"Techcore Oil Tools" was re-built in 2016 in Baoji city, specialized in design and manufacturing of drill stem testing tools, coiled tubing tools, wireline tools and other downhole tools.
Wireline Presssure Control Equipment
Wellhead Adapter, Tool Trap, Blow Out Preventer, Lubricator, Grease Injection Control Head, Tool Catcher, Stuffing Box, Grease Injection System, BOP Hydraulic Control System, Hay Pully, Wireline Clamp, Wireline Torsion Tester, Wireline Pull Tester,
